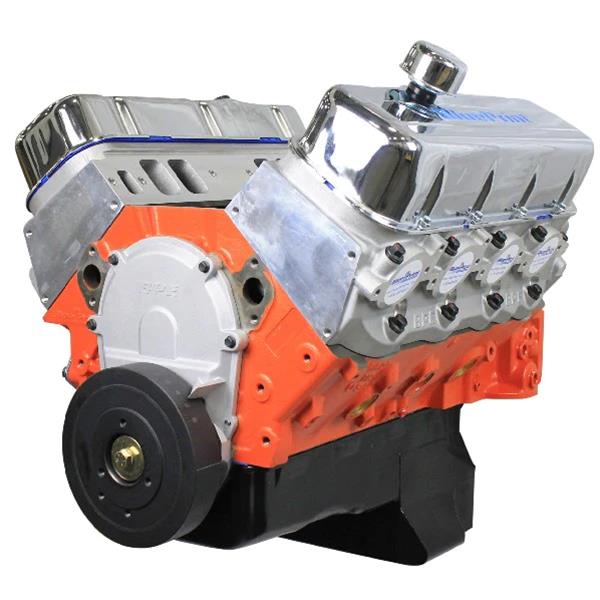

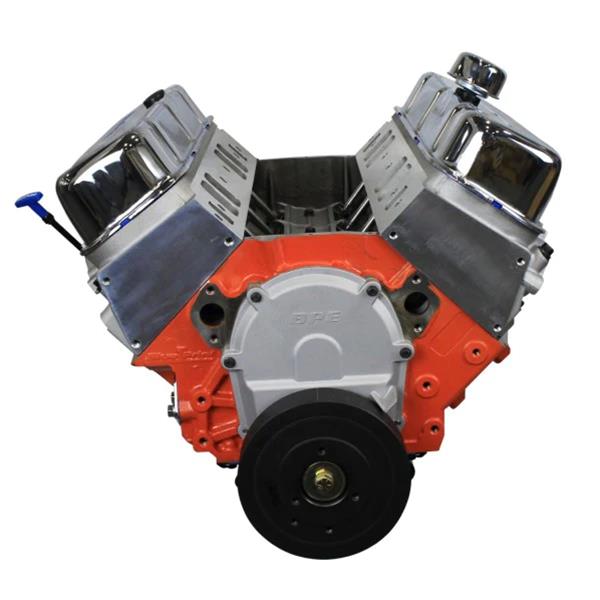

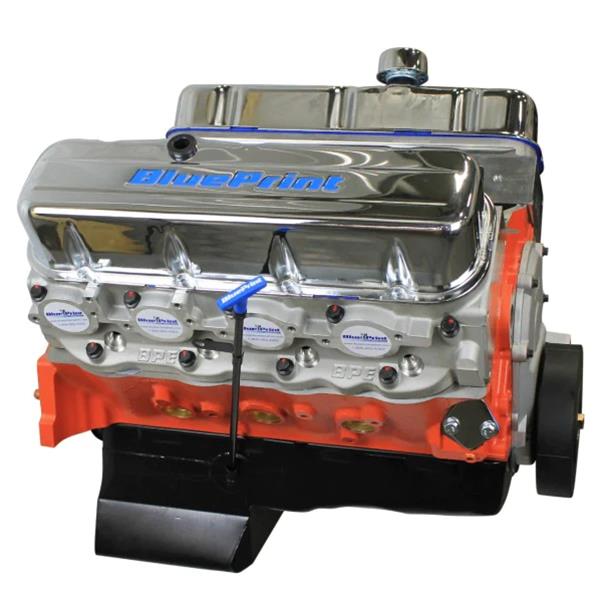

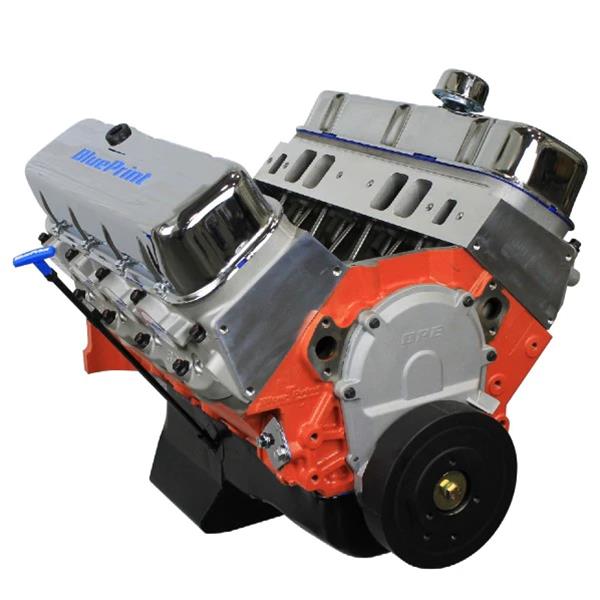

BluePrint Engines Pro Series Chevy 502 C.I.D. 621 HP Dressed Long Block Crate Engines PS502CTCKB
$8,239.00
Crate Engines, BluePrint Engines 502 c.i. big block GM style proseries engine – Dressed longblock w/ carb. incl. 30 month / 50,000 warranty & Dyno
Description
Overview
Brand: BluePrint Engines
Manufacturer’s Part Number: PS502CTCKB
Part Type: Crate Engines
Product Line: BluePrint Engines Pro Series Chevy 502 C.I.D. 621 HP Dressed Long Block Crate Engines
Summit Racing Part Number: MLL-PS502CTCKB
UPC: 00887753800145
Crate Engine Family: Chevy Big Block
Actual Engine Displacement: 8.2L/502
Crate Engine Cylinder Head Material: Aluminum
Engine Block Material: Cast iron
Advertised Compression Ratio: 10.0:1
Assembled: Yes
Engine Balance: Internal
Cam Style: Hydraulic roller, OE roller
Rear Main Seal Style: 1-piece
Intake Manifold Included: Yes
Intake Manifold Style: Carbureted
Cylinder Heads Included: Yes
Carburetor Included: Yes
Throttle Body Included: No
Distributor Included: Yes
Oil Pan Included: Yes
Valve Covers Included: Yes
Timing Cover Included: Yes
Water Pump Included: Yes
Harmonic Balancer Included: Yes
Flexplate Included: No
Flywheel Included: No
Air Cleaner Included: No
Spark Plugs Included: Yes
Spark Plug Wires Included: Yes
Computer Included: No
Wiring Harness Included: No
Water Pump Style: Long
Supercharger Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Standard deck engine has 4-bolt mains. Cylinder heads feature a 0.300 in. raised exhaust port versus an OEM casting. Includes an 850 cfm carburetor and a black front accessory drive system.
BluePrint Engines Pro Series Chevy 502 C.I.D. 621 HP Dressed Long Block Crate Engines
Blueprint Pro Series is for those wanting maximum horsepower and durability.
BluePrint Engines Pro Series Chevy 502 c.i.d. 621 hp dressed long block crate engines offer any custom builder, hot rodder, or kit car builder an engine that has been fully dyno tested, passed vigorous inspections, and is ready to power up your project.
Blueprint’s Pro Series 502 big block GM-style engines are dressed with carburetor, aluminum heads, forged pistons, forged crankshaft, and a hydraulic roller cam.
Additional features:
* Standard deck with 4-bolt main
* Forged H-beam connecting rods
* Cylinder head specs:
— 119cc chamber
— 2.30 in. intake / 1.88 in. exhaust valves
— 316cc intake / 124cc exhaust runners
* Camshaft specs:
— .647 intake / .647 exhaust
— 248 intake / 254 exhaust duration
— at .050 – 112 degree lobe separation

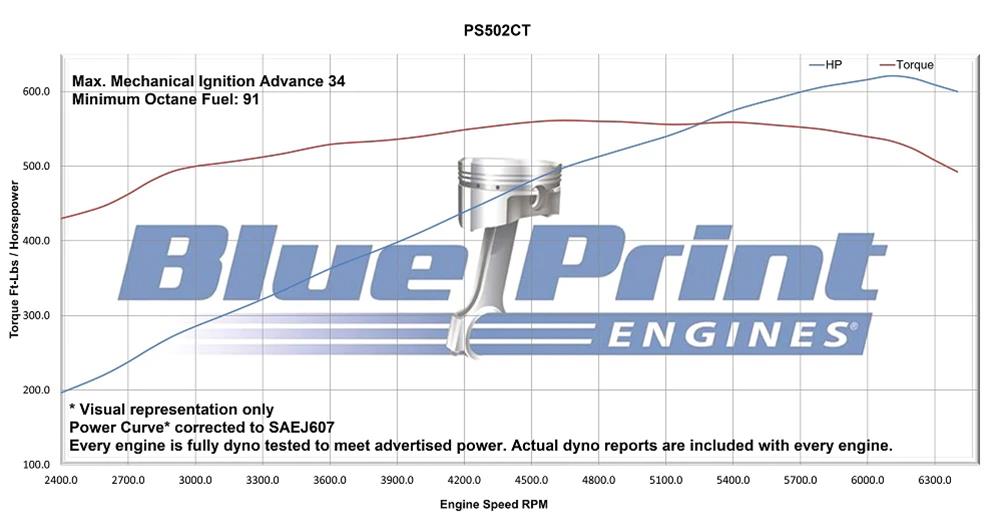

* Dyno test results shipped with engine
